Here are some pictures of my Bros with various modifications.

Most of the images are between 150-200k so be patient when you click on the thumbnail to show full screen image.

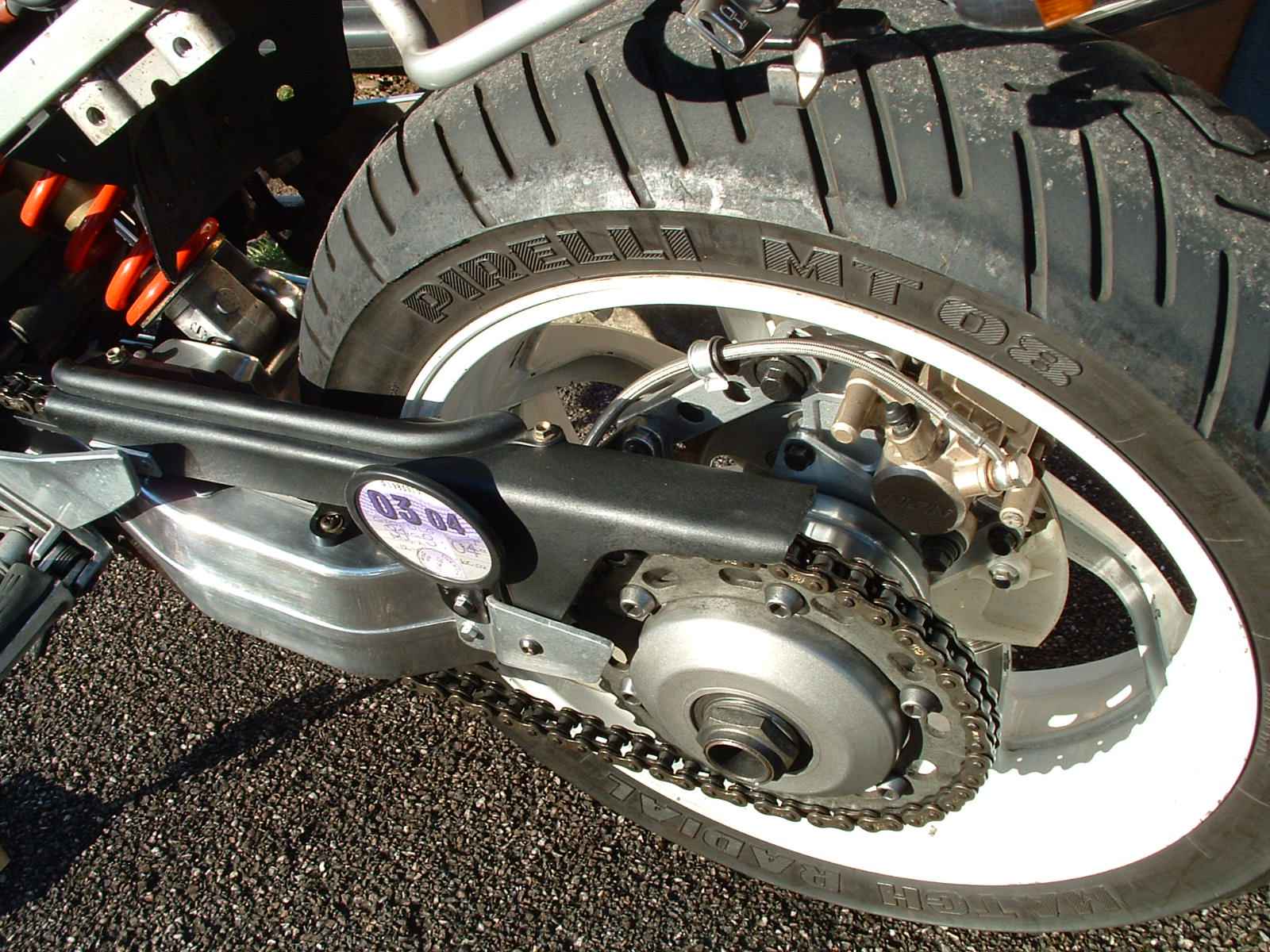

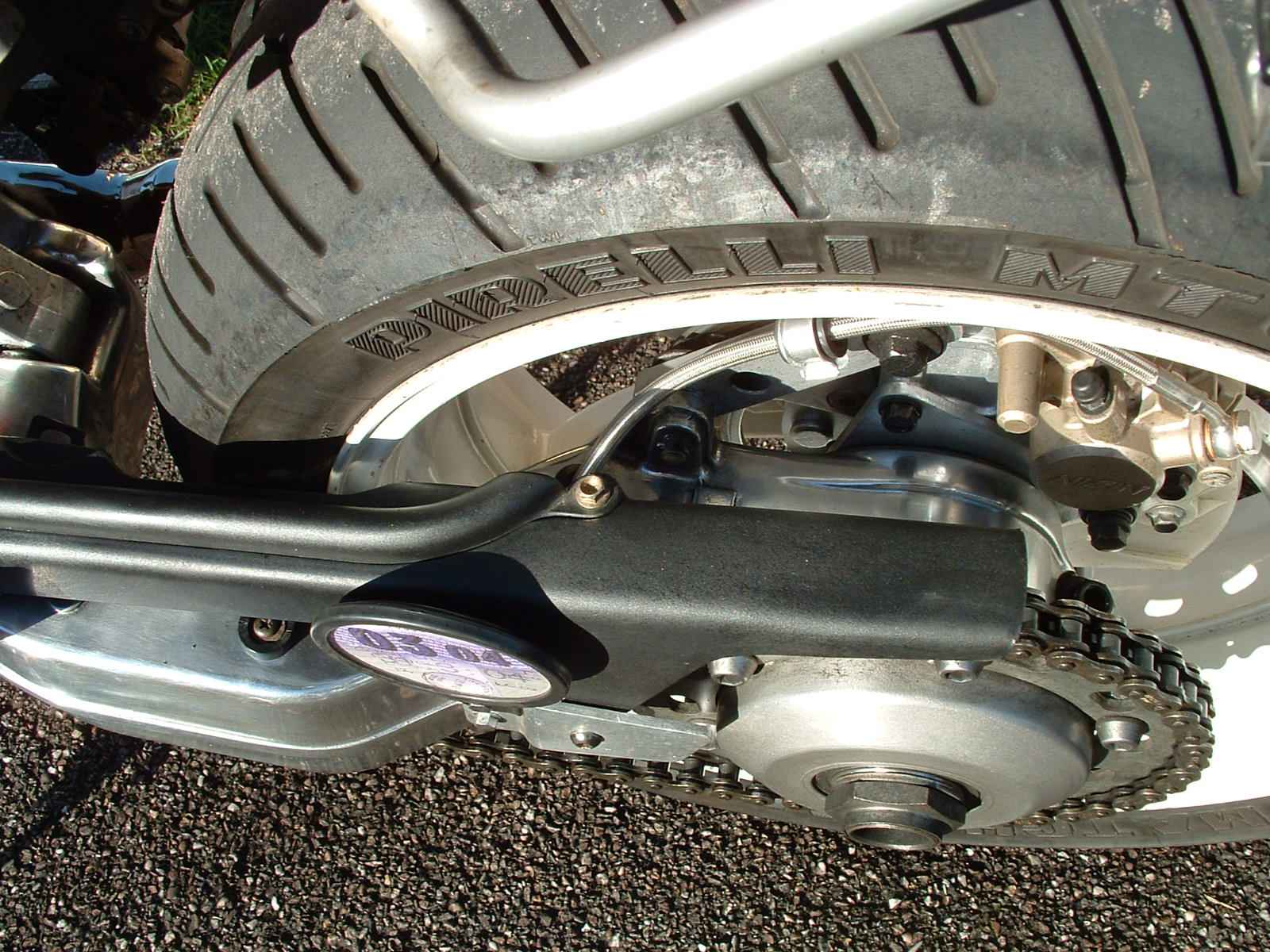

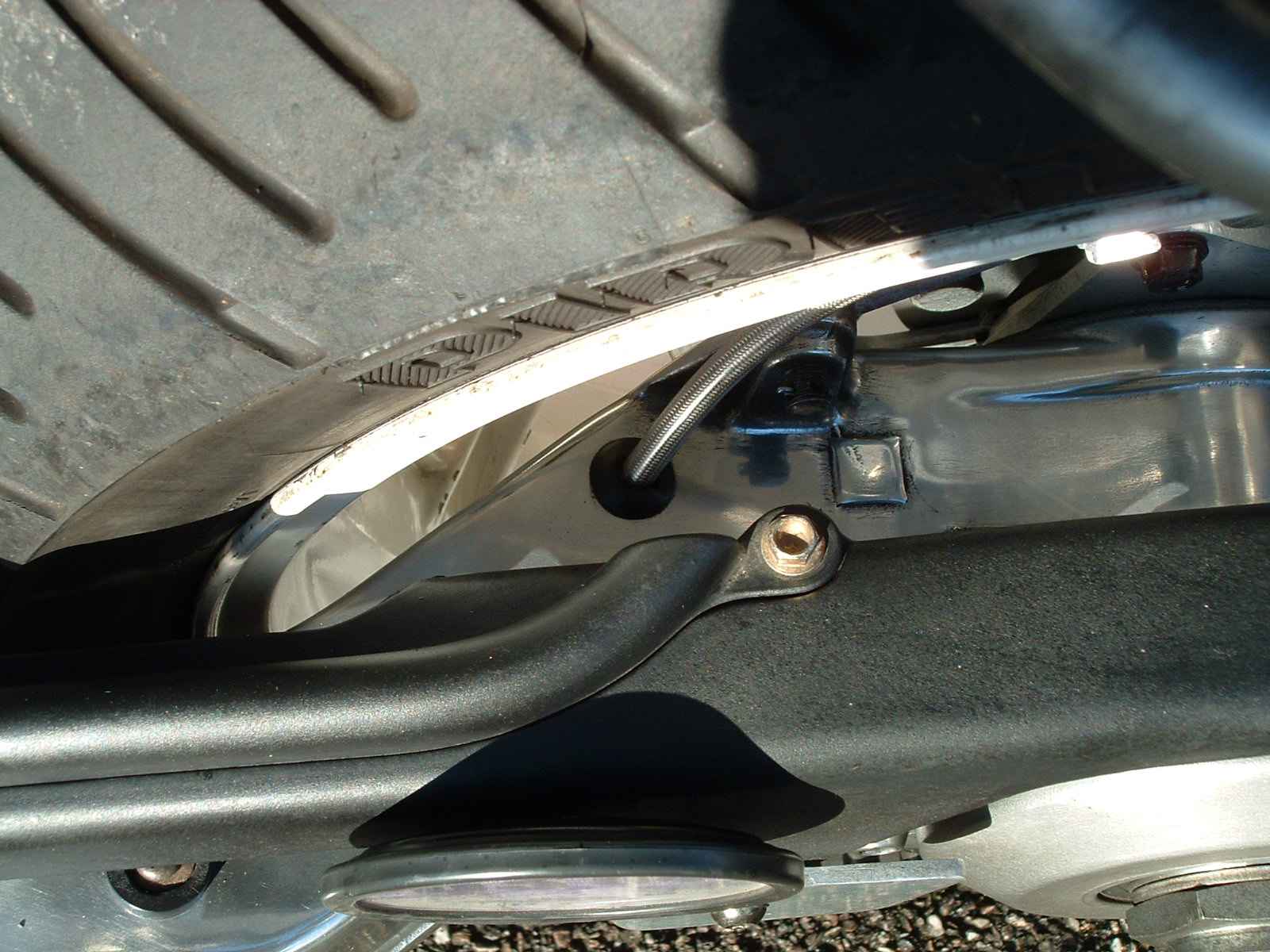

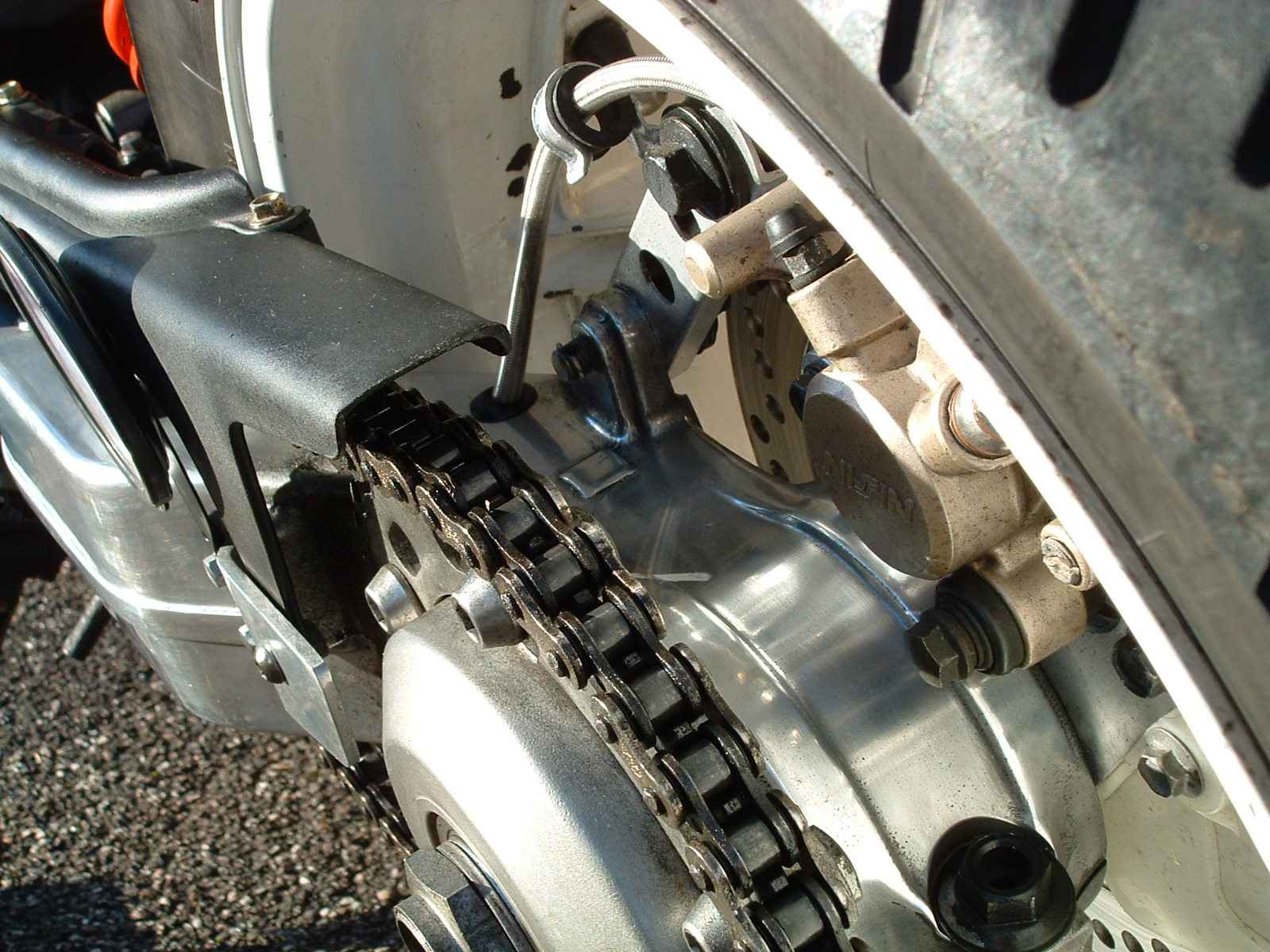

Some pics of the swing arm and brake line through the swing arm.

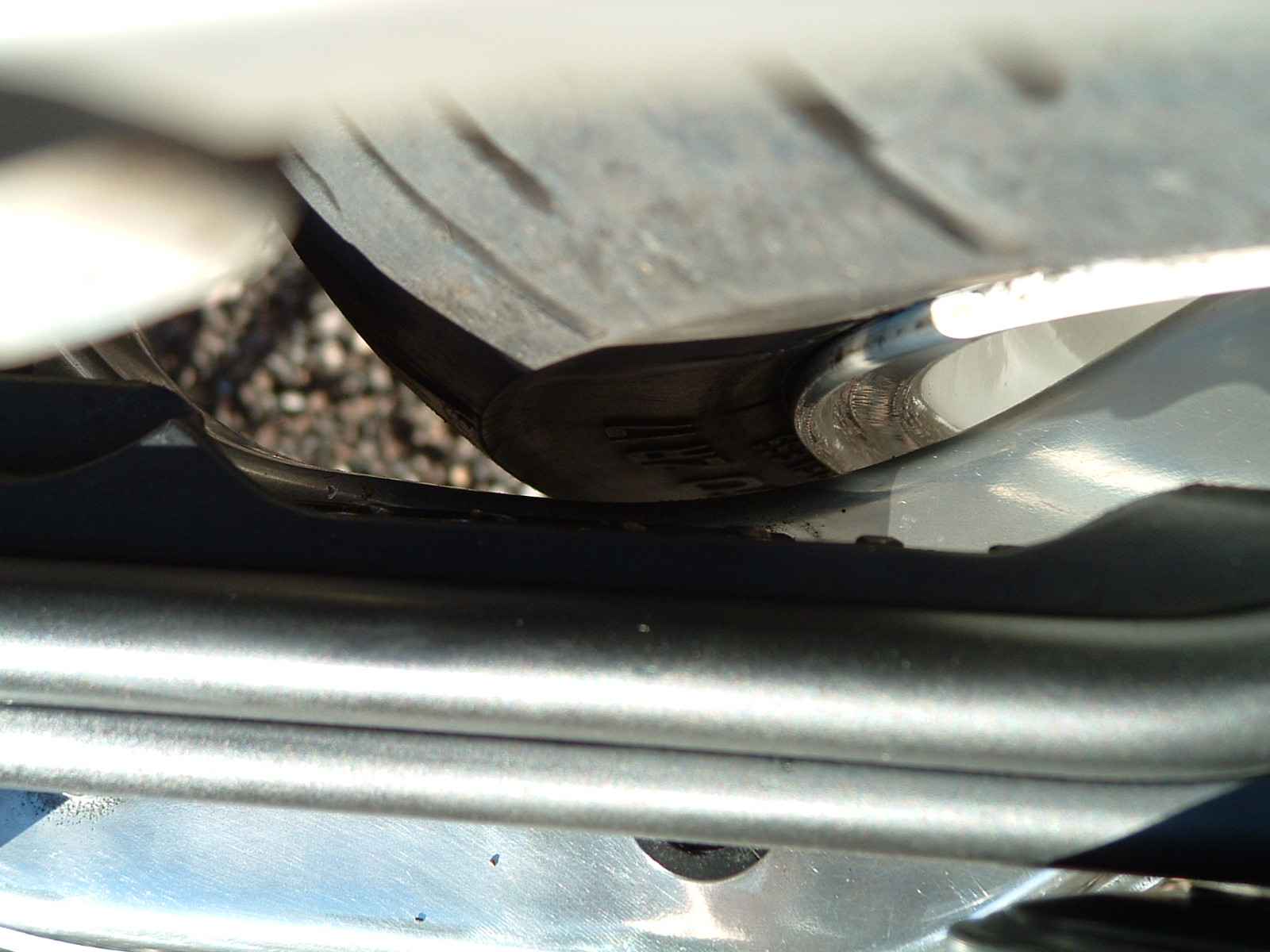

The gap between the 170 tyre and swing arm is approx 5mm.
The chain guard is Ducati 916.

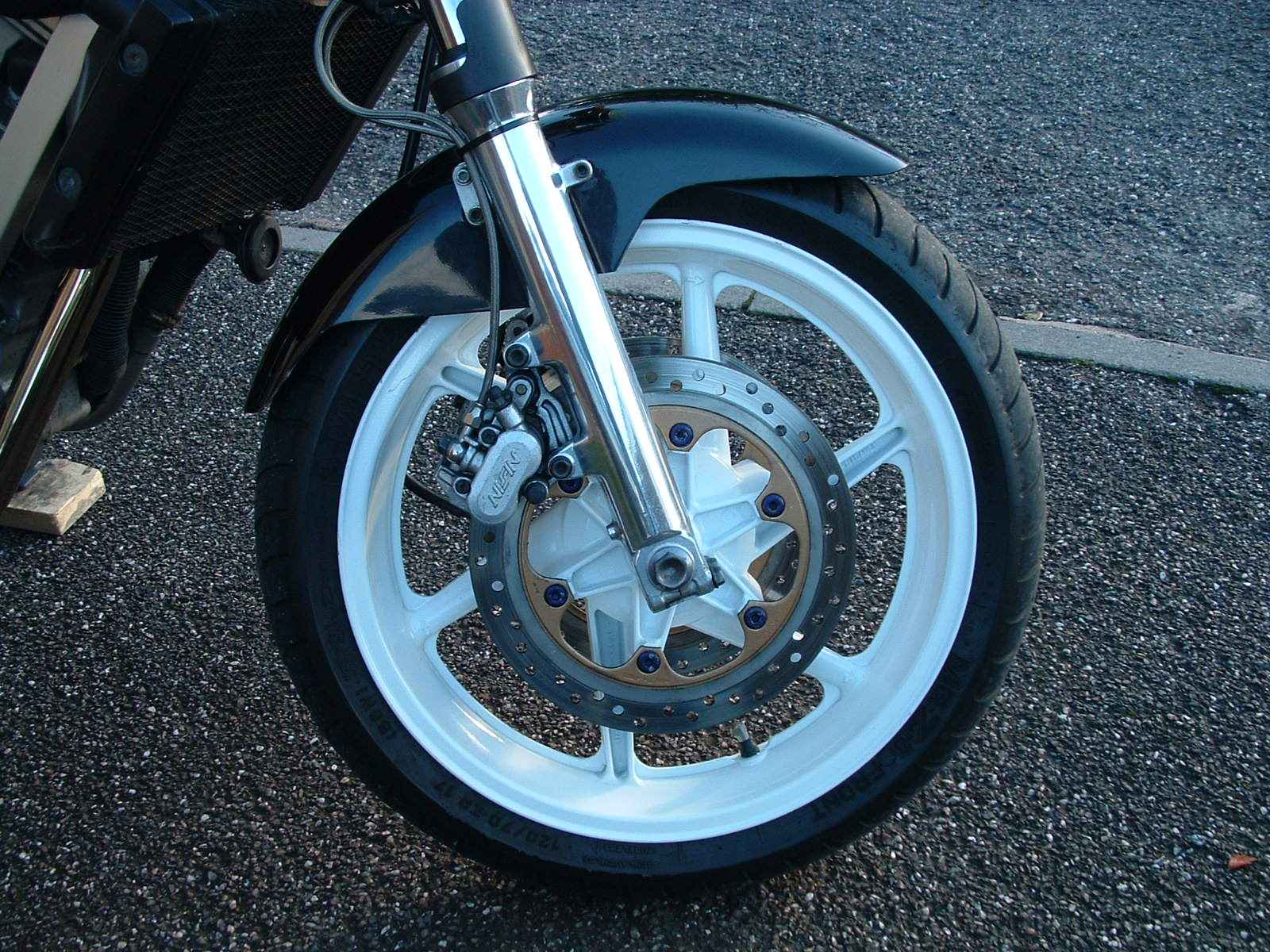

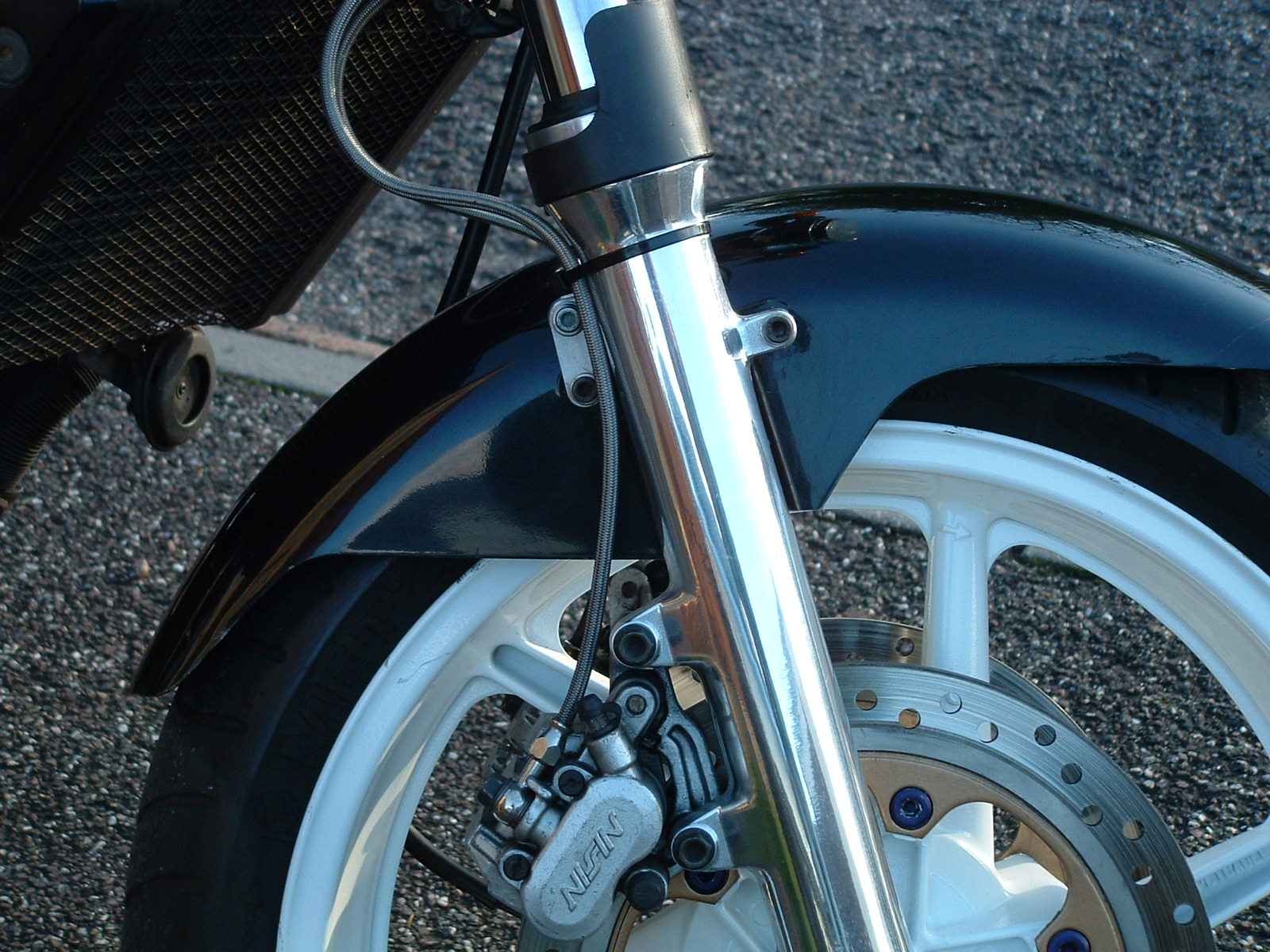

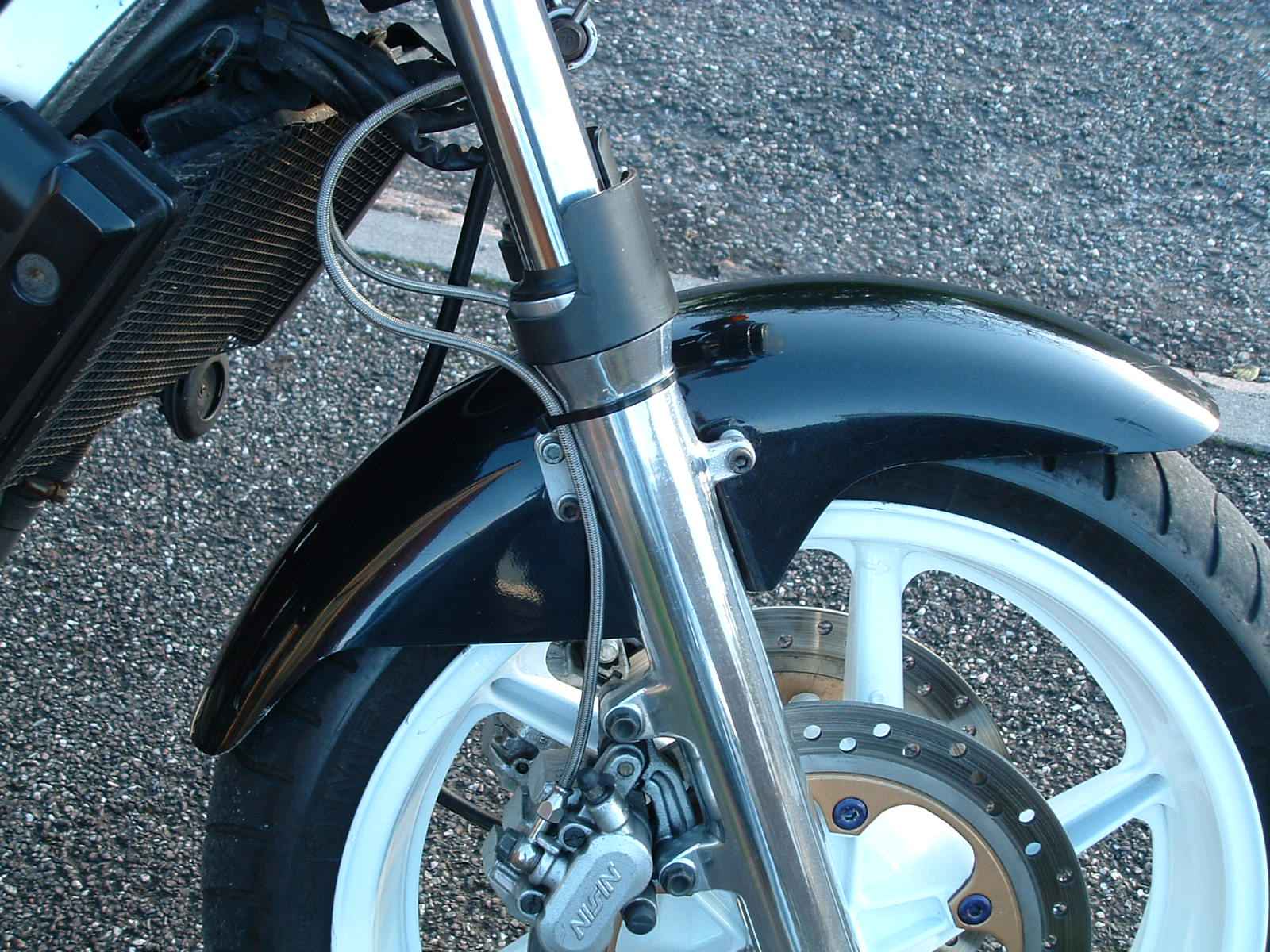

CBR600 FM front forks/wheel but using the Bros fender.
Req'd small alu bracket making.

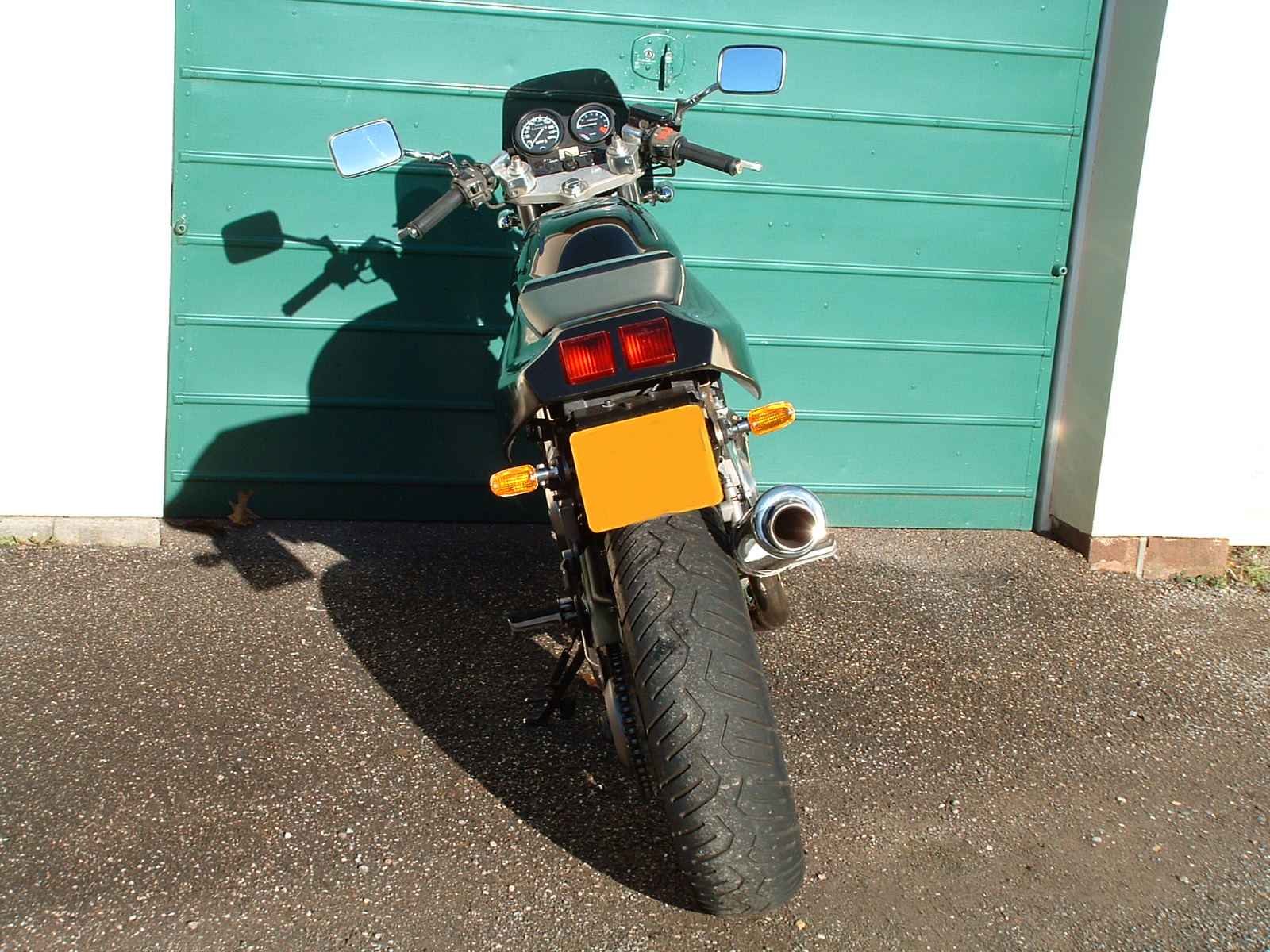

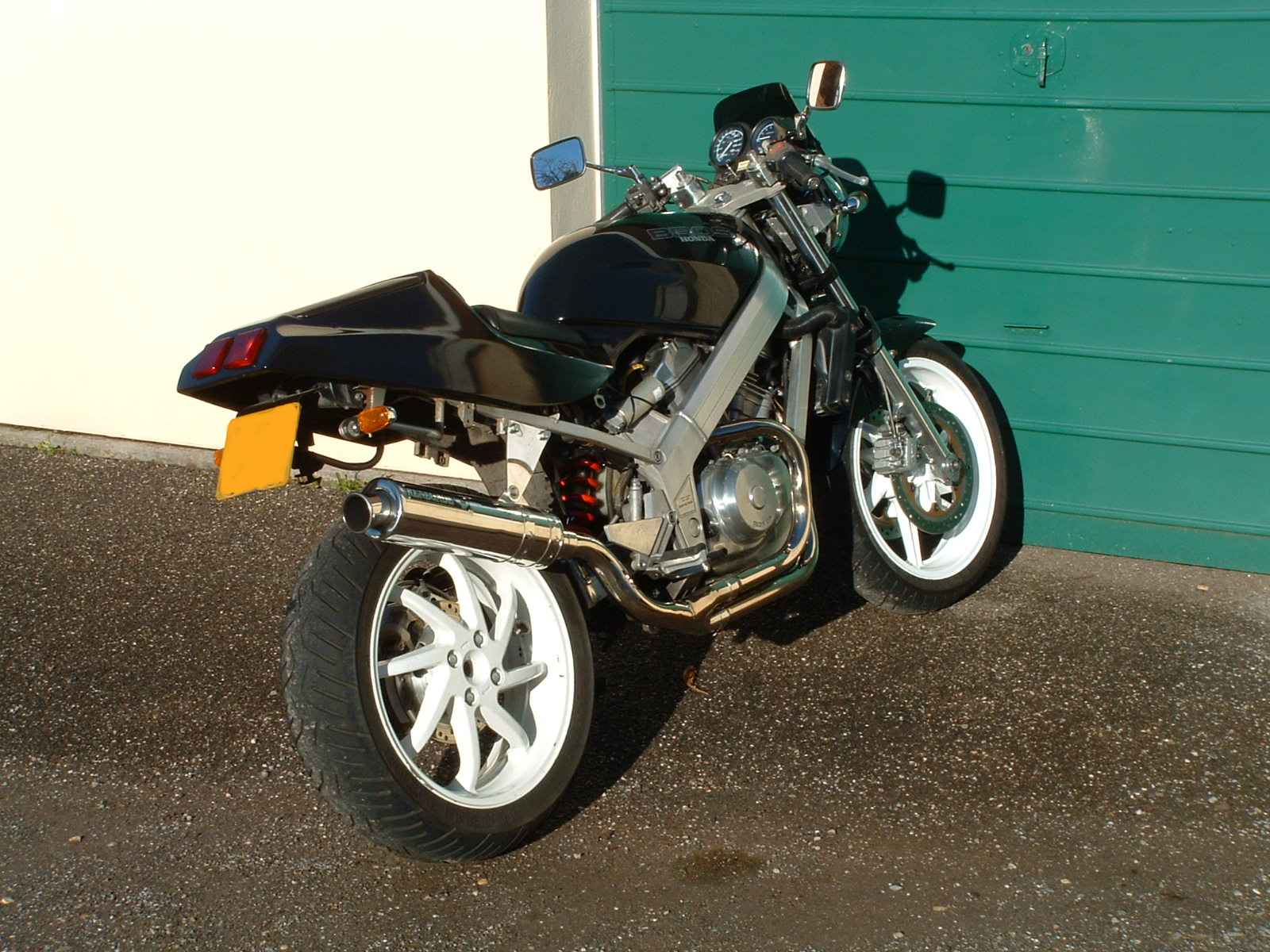

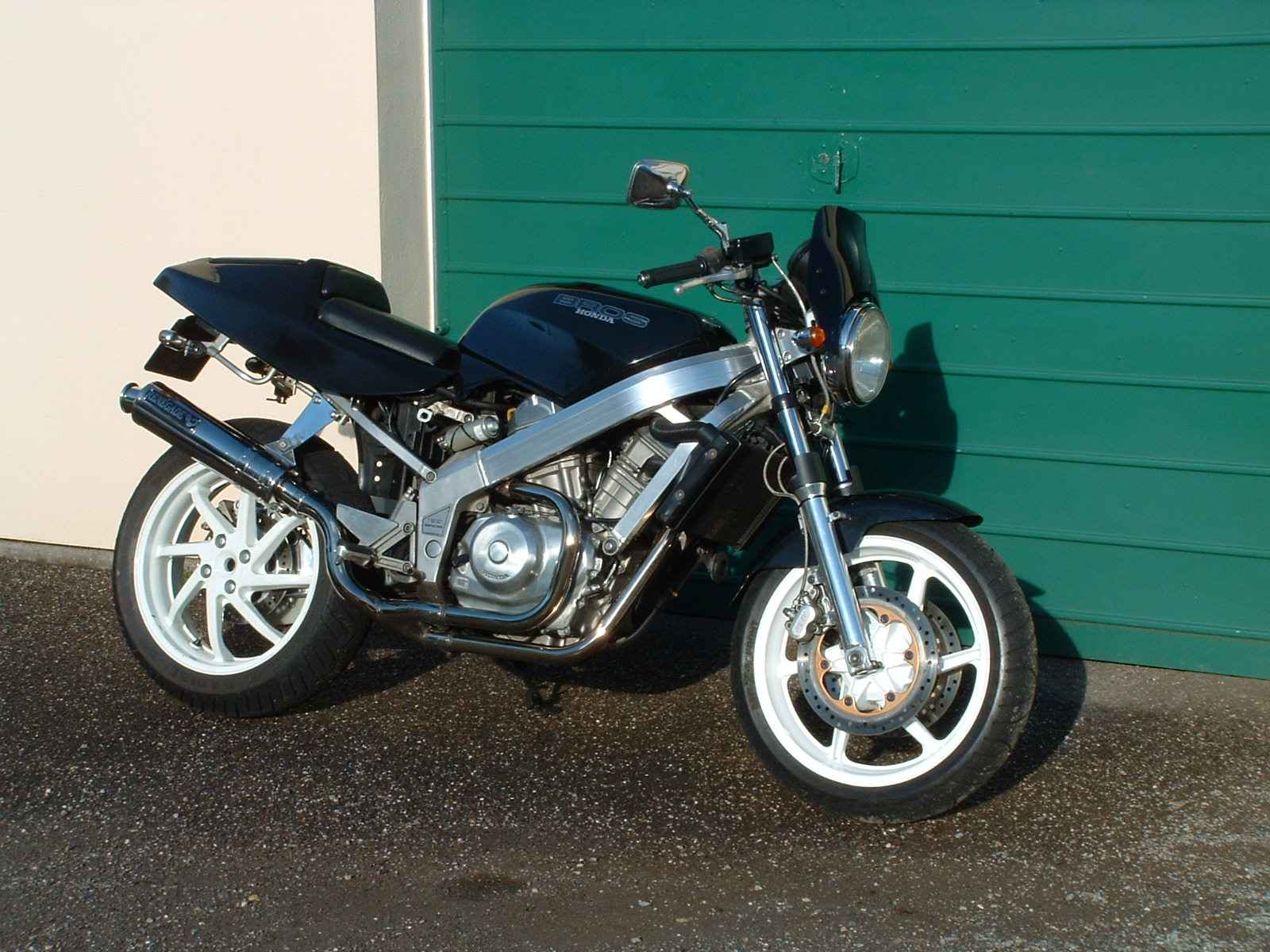

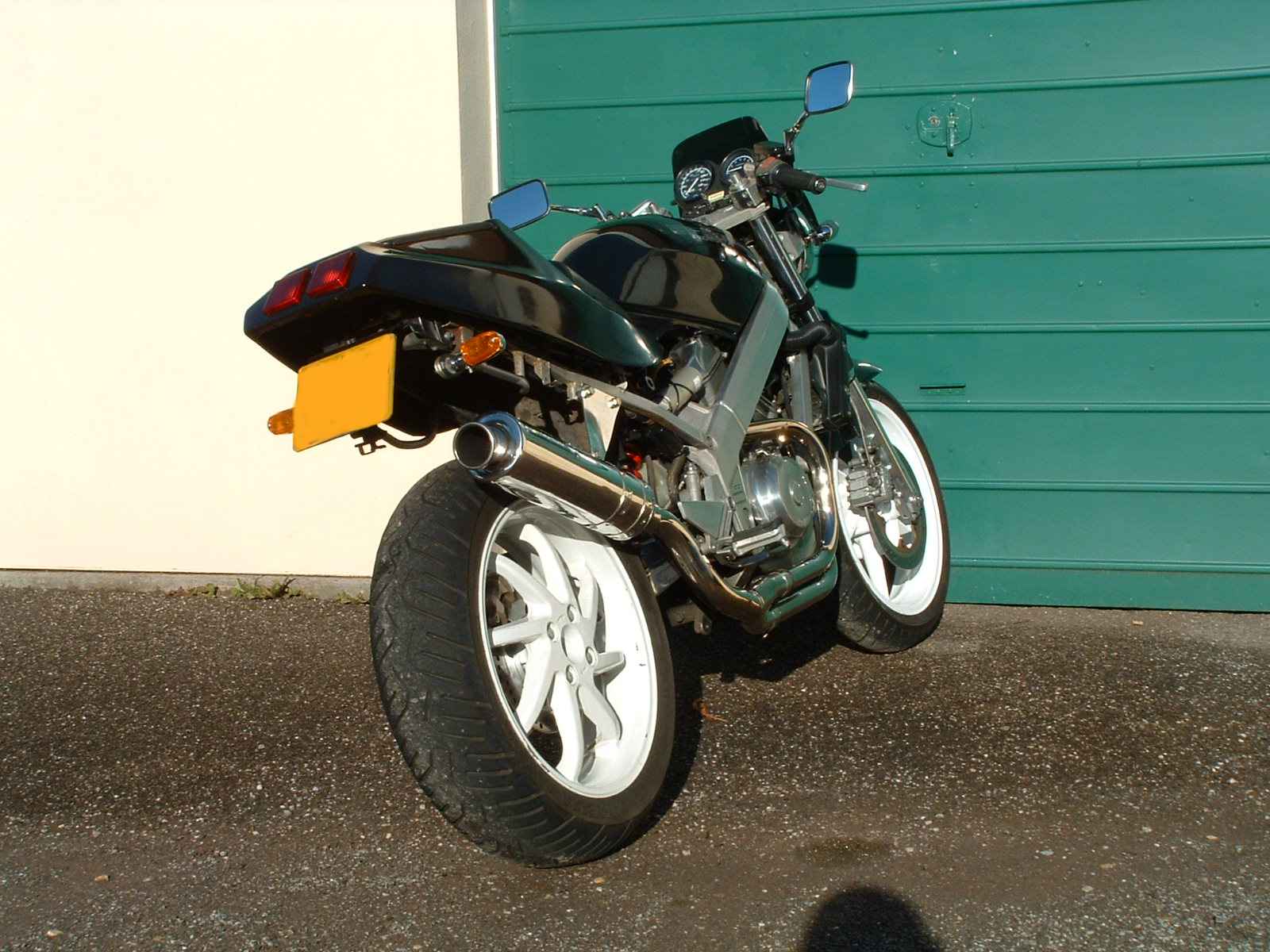

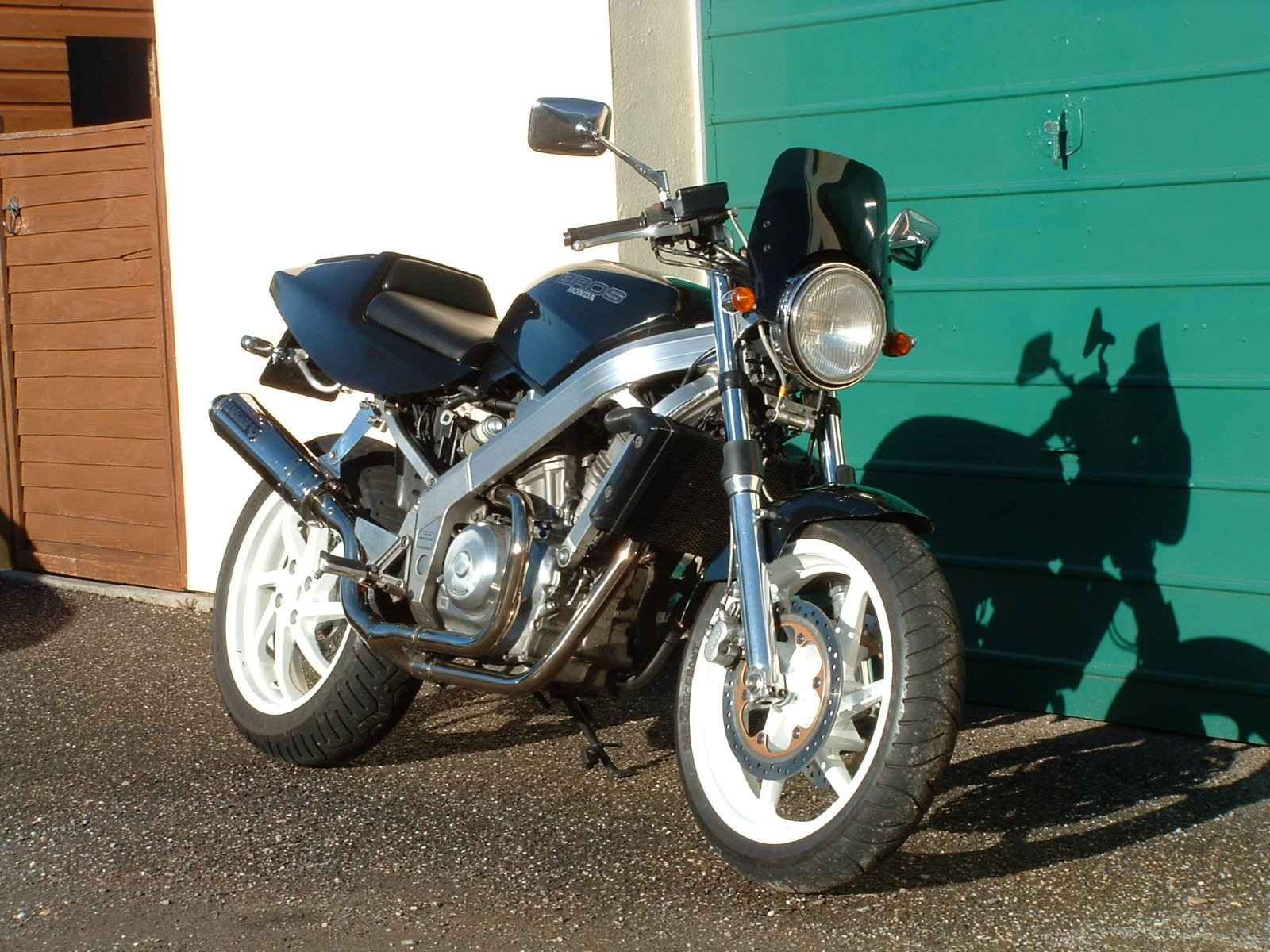

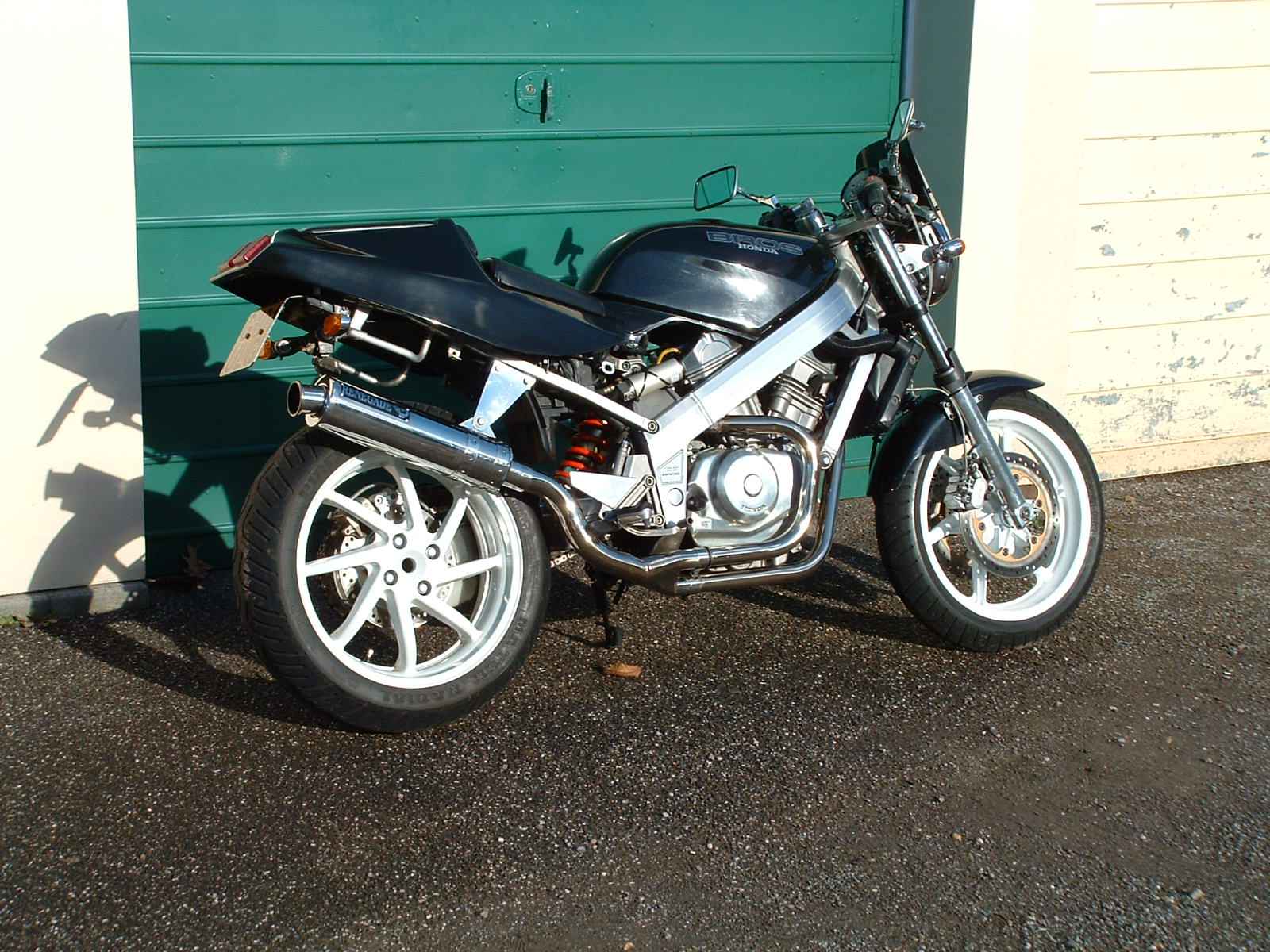

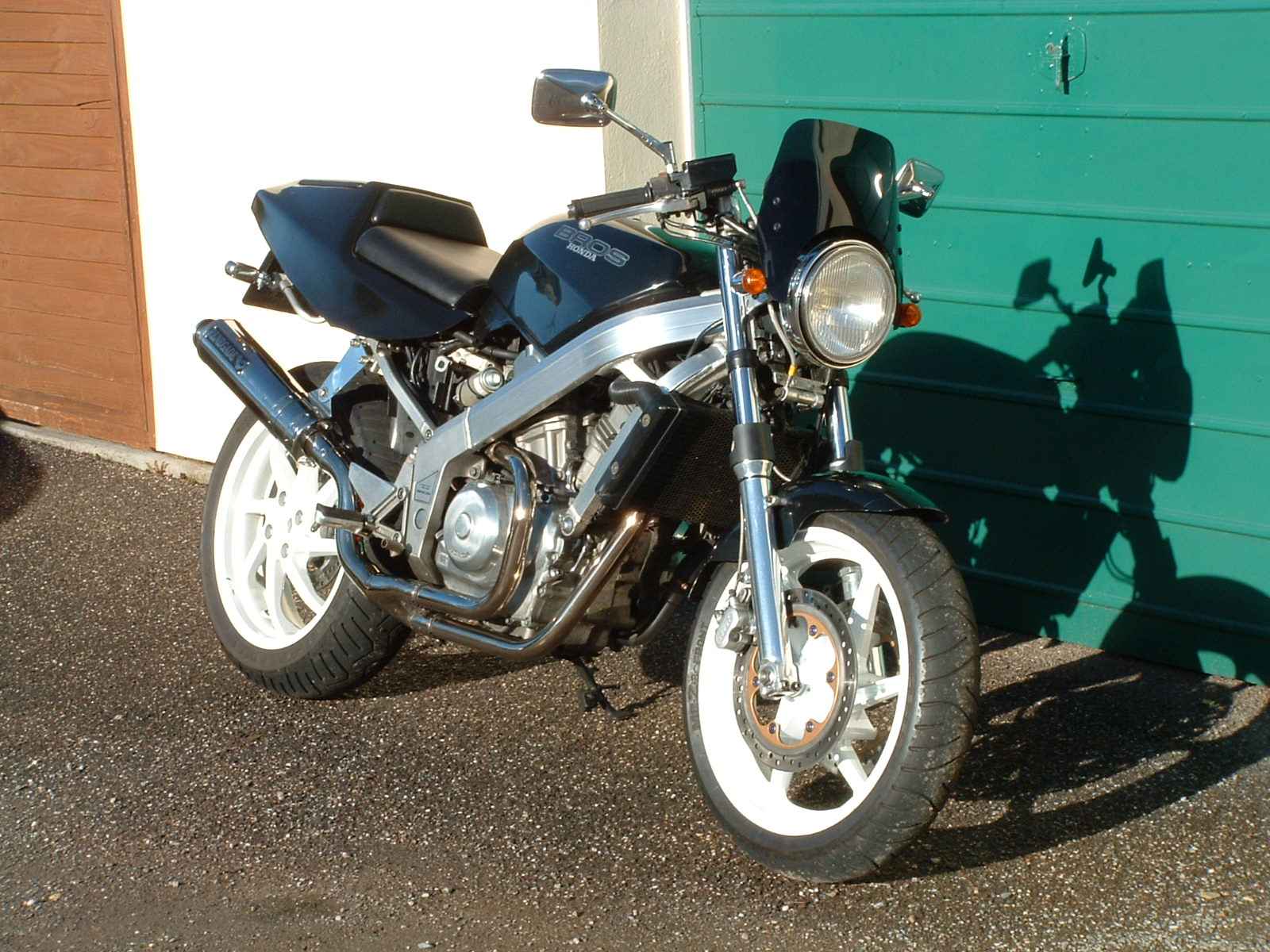

Current state of my Bros as at Nov 2003.
Wonder what to do this winter !!

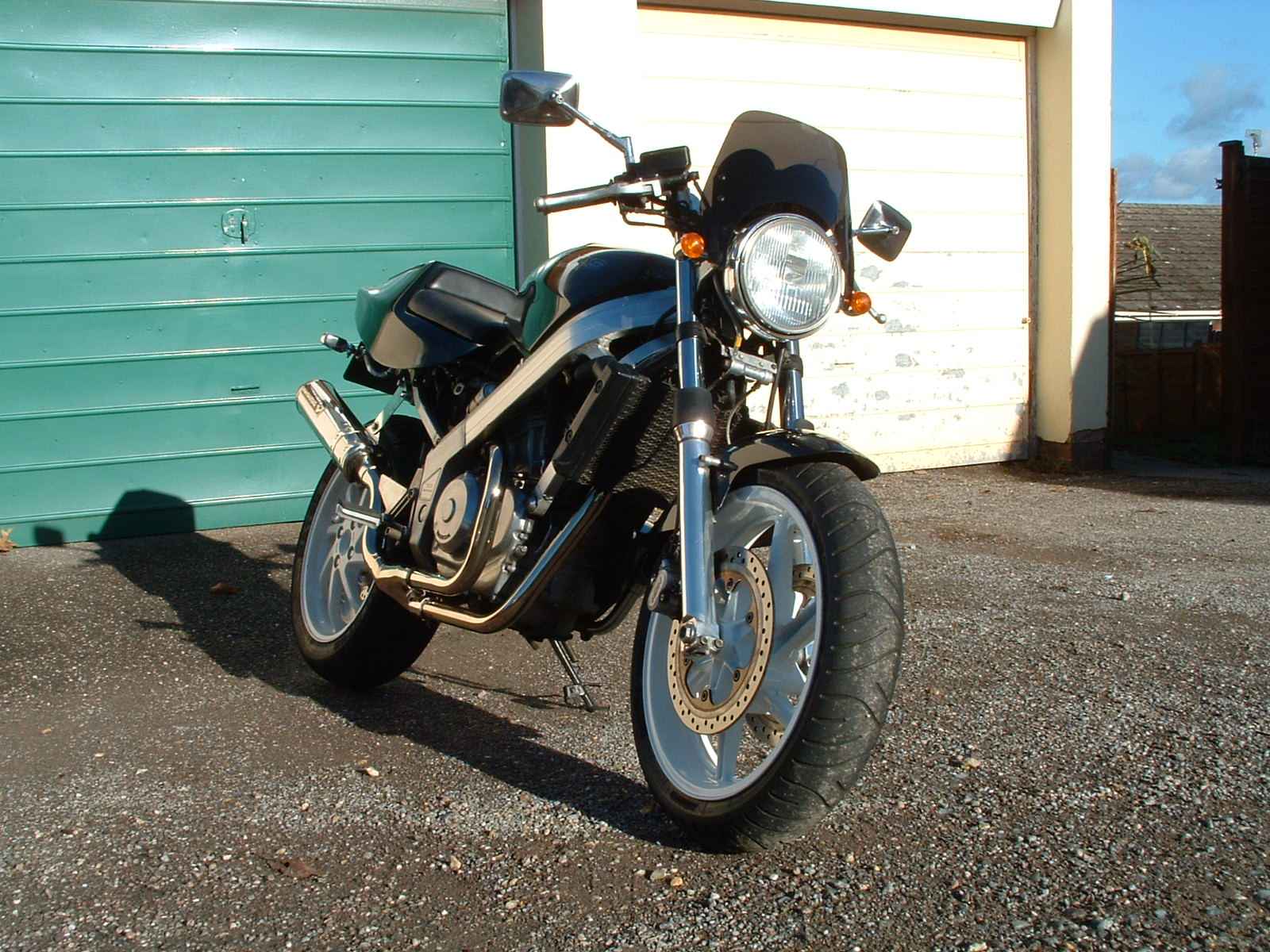

Just not sure about that screen?
Probably going to remove it.

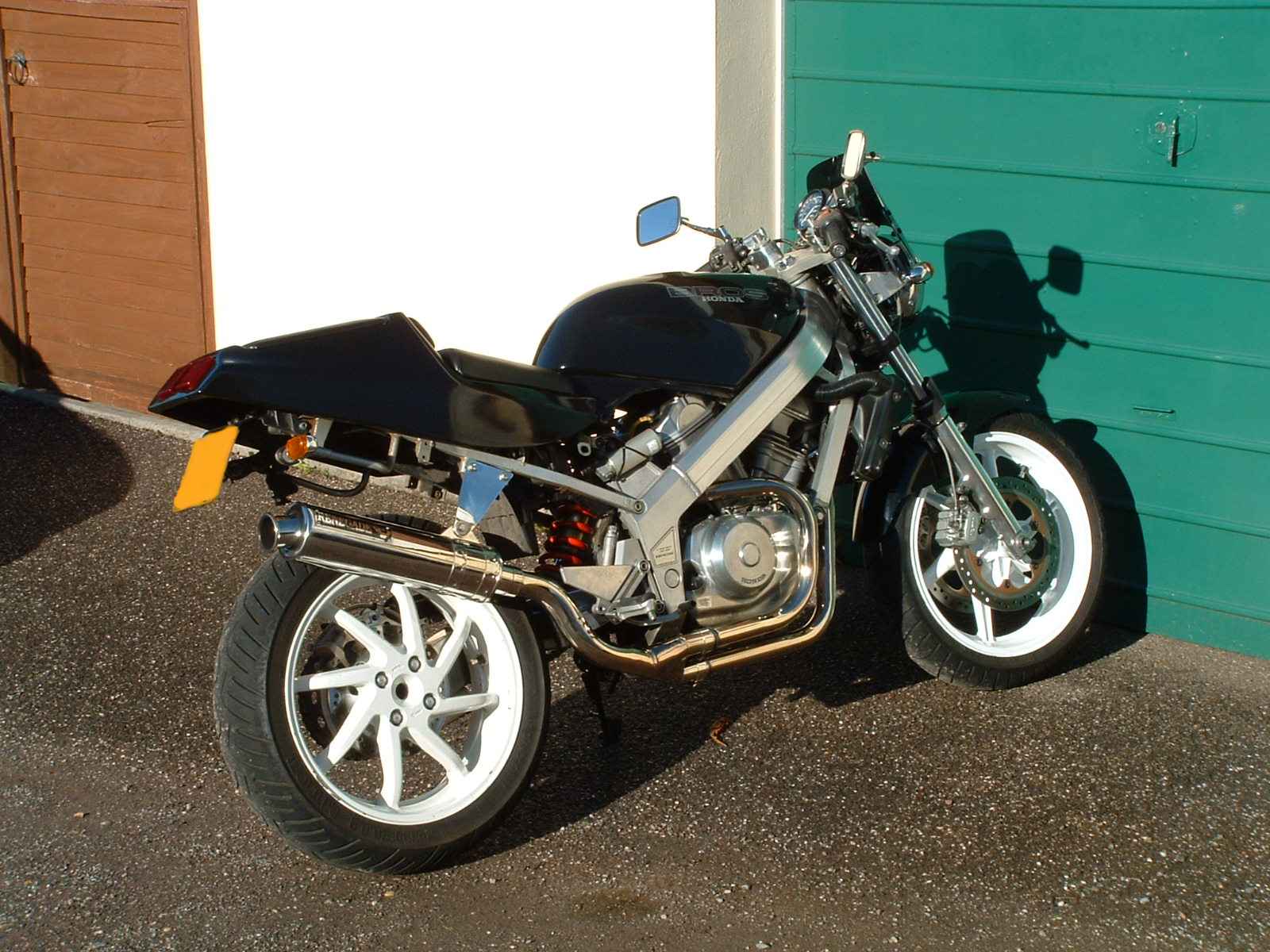

...and that exhaust can needs to come up tight to the seat unit
